Zabbix 6.4 에 새로운 기능도 많이 생기고, DB 도 변경(MySQL -> PostgreSQL)할 겸 재설치를 진행.
업그레이드 및 DB 마이그레이션도 가능하지만 기존 장비가 제대로 운영되지 않아 재설치 진행 함.
---------- ---------- ---------- ---------- ----------
- Zabbix 6.4 새로운기능- https://www.zabbix.com/whats_new_6_4
What’s new in Zabbix 6.4
With Zabbix 6.4, managing your Zabbix configuration is easier than ever! Automate your Zabbix user management with Just-in-time LDAP and SAML user provisioning; upgrade to the latest Zabbix release with zero downtime; instantly sync your configuration chan
www.zabbix.com
- PostgreSQL vs MySQL 테스트 참고 - https://assets.zabbix.com/files/zabconf2013/Which_Database_is_Better_for_Zabbix.pdf
---------- ---------- ---------- ---------- ----------
구성 정보
- OS: Ubuntu 22.04.4 LTS
- PostgreSQL: psql (PostgreSQL) 14.11 (Ubuntu 14.11-0ubuntu0.22.04.1)
- Zabbix Server: zabbix_server (Zabbix) 6.4.14
- Zabbix Agent: zabbix_agentd (daemon) (Zabbix) 6.4.14
- Server 구성: zdb(zabbix db) / zweb(zabbix front) / zserver(zabbix server)
---------- ---------- ---------- ---------- ----------
설치
zserver
# wget https://repo.zabbix.com/zabbix/6.4/ubuntu/pool/main/z/zabbix-release/zabbix-release_6.4-1+ubuntu22.04_all.deb
# dpkg -i zabbix-release_6.4-1+ubuntu22.04_all.deb
# apt update
# apt install zabbix-server-pgsql zabbix-agent
# systemctl start zabbix-server.service
# systemctl enable zabbix-server.service
# systemctl status zabbix-server.service
zweb
# wget https://repo.zabbix.com/zabbix/6.4/ubuntu/pool/main/z/zabbix-release/zabbix-release_6.4-1+ubuntu22.04_all.deb
# dpkg -i zabbix-release_6.4-1+ubuntu22.04_all.deb
# apt update
# apt install zabbix-frontend-php php8.1-pgsql zabbix-apache-conf zabbix-agent
# systemctl start apache2
# systemctl enable apache2
# systemctl status apache2
zdb
# dpkg -i zabbix-release_6.4-1+ubuntu22.04_all.deb
# apt update
# apt install postgresql
# apt install zabbix-sql-scripts zabbix-agent
# systemctl status postgresql
# systemctl enable postgresql
zproxy
# dpkg -i zabbix-release_6.4-1+ubuntu22.04_all.deb
# apt update
# apt install postgresql
# apt install zabbix-proxy-pgsql zabbix-sql-scripts zabbix-agent
# systemctl status postgresql
# systemctl enable postgresql
---------- ---------- ---------- ---------- ----------
설정
zdb
/tmp 아래로 이동 후 진행
(DB 초기화)
# sudo -u postgres createuser --pwprompt zabbix
# sudo -u postgres createdb -O zabbix zabbix
(DB 스키마 생성)
# zcat /usr/share/zabbix-sql-scripts/postgresql/server.sql.gz | sudo -u zabbix psql zabbix
(DB 외부 연동 설정)
# vi /etc/postgresql/14/main/postgresql.conf
- 변경 전: listen_addresses = 'localhost'
- 변경 후: listen_addresses = '*'
# vi /etc/postgresql/14/main/pg_hba.conf
IPv4 local connections: 수정
- 변경 전: host all all 127.0.0.1/32 scram-sha-256
- 변경 후: host all all 0.0.0.0/0 scram-sha-256
(DB 권한 설정)
# sudo -u postgres psql

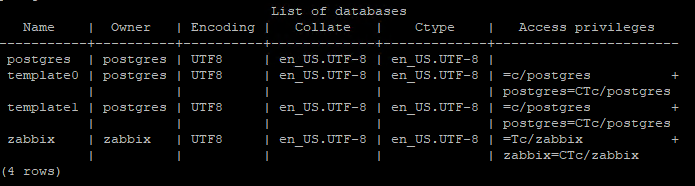

(데이터베이스 목록 확인)
postgres=# \l
(권한 부여)
postgres=# GRANT ALL PRIVILEGES ON DATABASE zabbix TO zabbix;
(데이터베이스 목록 확인)
postgres=# \l
(나가기)
postgres=# \q
# systemctl restart postgresql
zserver
(DB 연동)
# vi /etc/zabbix/zabbix_server.conf
- DBHost=zdb
- DBPassword=설정한 패스워드
# systemctl restart zabbix-server.service
zweb
(설정 파일 복사)
# cp /usr/share/zabbix/conf/zabbix.conf.php.example /etc/zabbix/web/
# cd /etc/zabbix/web/
# mv zabbix.conf.php.example zabbix.conf.php
(DB 및 Sever 연동)
# vi /etc/zabbix/web/zabbix.conf.php
- $DB['TYPE'] = 'POSTGRESQL';
- $DB['SERVER'] = 'zdb';
- $DB['PORT'] = '5432';
- $DB['PASSWORD'] = ' 설정한 패스워드 ';
- $ZBX_SERVER_NAME = 'zserver';
# systemctl restart apache2
zproxy
/tmp 아래로 이동 후 진행
(DB 초기화)
# sudo -u postgres createuser --pwprompt zabbix
# sudo -u postgres createdb -O zabbix zabbix_proxy
(DB 스키마 생성)
# cat /usr/share/zabbix-sql-scripts/postgresql/proxy.sql | sudo -u zabbix psql zabbix_proxy
(Proxy 설정)
# vi /etc/zabbix/zabbix_proxy.conf
- Server=zserver
- ProxyMode=0
- Hostname=zproxy
- DBPassword= 설정한 패스워드
- DataSenderFrequency=60
# systemctl restart zabbix-proxy
# systemctl enable zabbix-proxy
---------- ---------- ---------- ---------- ----------
확인

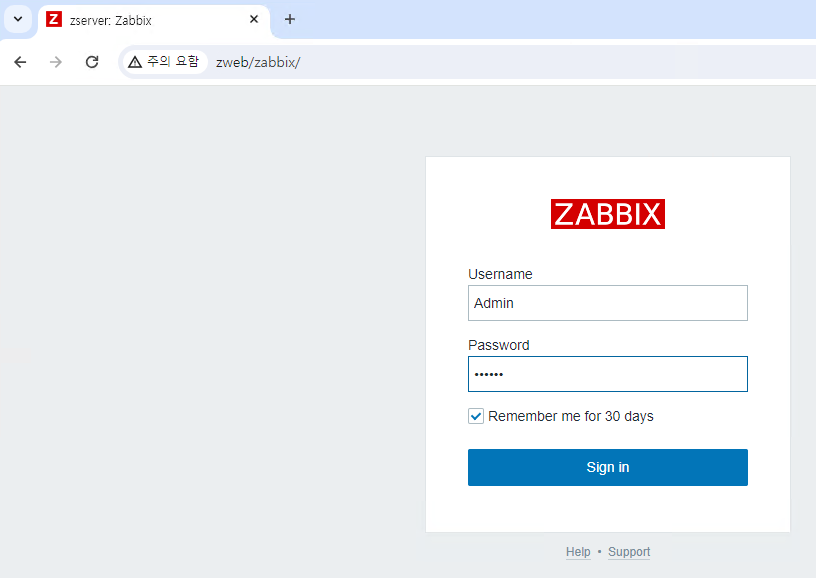

(웹 접속)
http://zweb/zabbix
- 초기 id/비번: Admin/zabbix (대소문자 구분)
---------- ---------- ---------- ---------- ----------

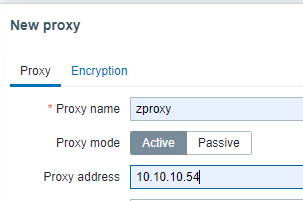

Proxy 서버 등록
웹 접속 후 Administration - Proxies 클릭
오른쪽 상단 Create proxy 클릭 -> 입력 후 Add
등록 후

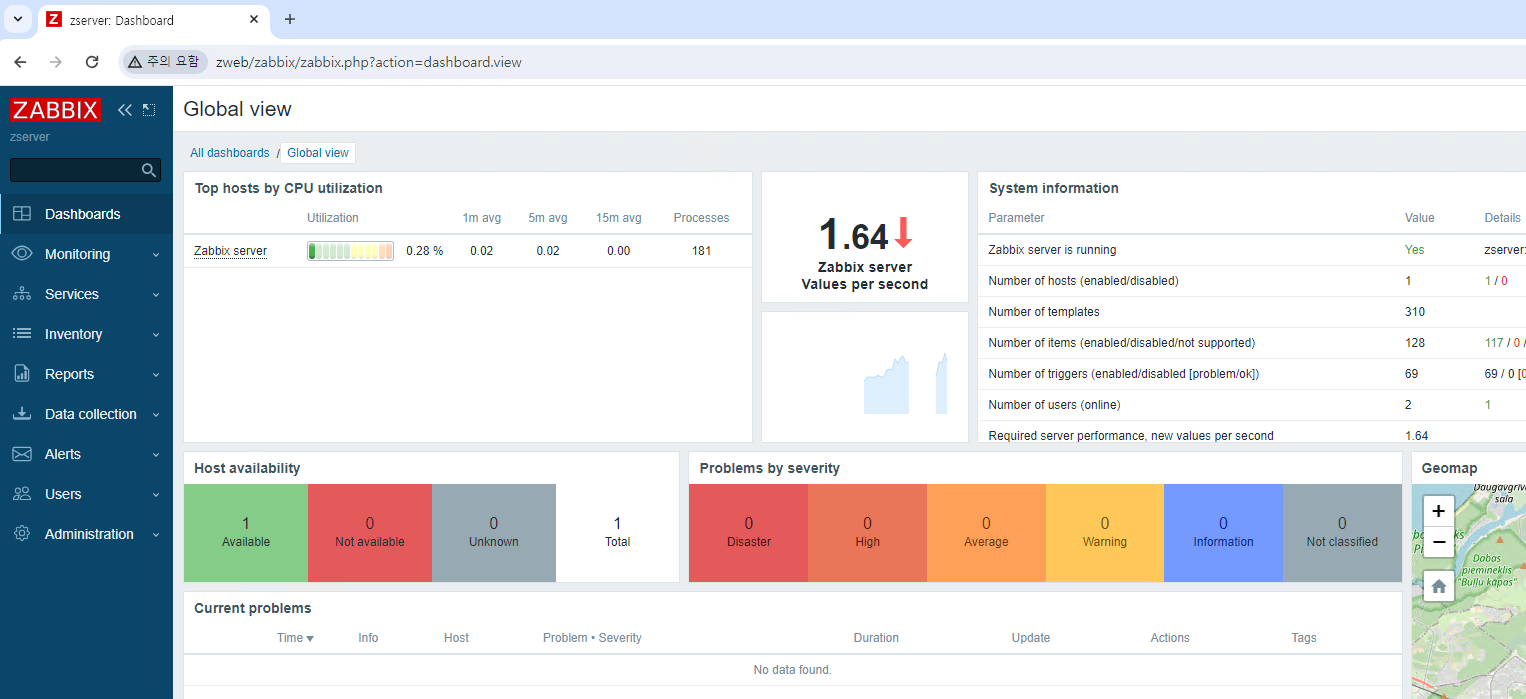

일정 시간 경과 후 데이터 전송
---------- ---------- ---------- ---------- ----------
참고
apache2 실행 오류
May 03 06:39:09 zweb systemd[1]: apache2.service: Control process exited, code=exited, status=1/FAILURE
May 03 06:39:09 zweb systemd[1]: apache2.service: Failed with result 'exit-code'.
May 03 06:39:09 zweb systemd[1]: Failed to start The Apache HTTP Server.
구동 중인 nginx 중지 후 apache2 재실행
# netstat -nlp | grep :80
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 710/nginx: master p
tcp6 0 0 :::80 :::* LISTEN 710/nginx: master p
# kill -9 710

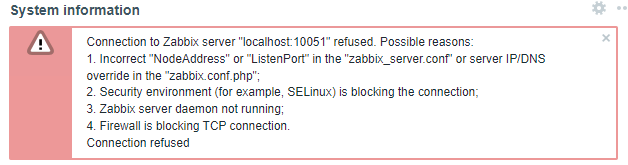

System Infomation 경고창
zserver에서 zabbix_server.conf 파일안에 NodeAddress=localhost:10051 부분을 수정
# vi /etc/zabbix/zabbix_server.conf
- 변경 전: NodeAddress=localhost:10051
- 변경 후: NodeAddress=zserver:10051
# systemctl restart zabbix-server.service
